update time ：2025-08-29
Model：WX-BQX7
Product Price: Electronic Negotiation
Product brand: Wanxiang Environment
1. Introduction to portable weather station products
Portable weather stations are also called portable weather instruments, mobile weather stations. Portable weather stations are small in size, easy to carry, real-time monitoring, and accurate in data. They can provide temperature, humidity, air pressure, wind speed and other meteorological indicators anytime and anywhere, allowing you to understand them anytime and anywhere. weather. .

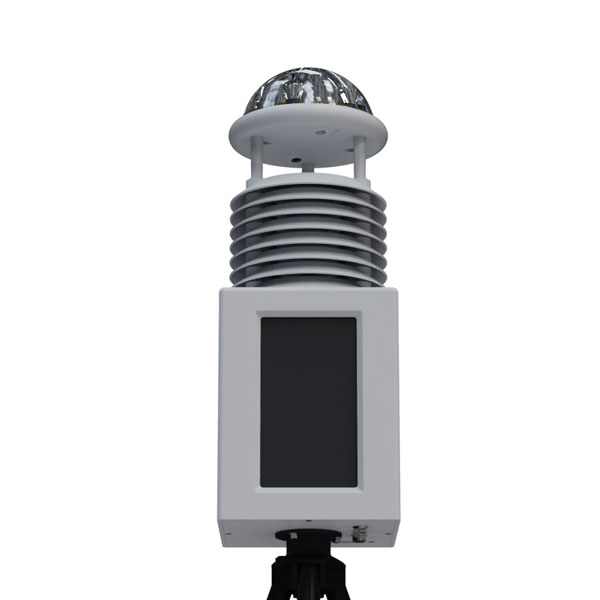

The WX-BXQX7 portable weather station is a highly integrated, low-power, quick-to-install, high-precision automatic weather observation equipment that is easy to use for field monitoring.
The device supports wired, Bluetooth, GPRS and other transmission methods. It requires no debugging and can be quickly deployed. It is suitable for the acquisition of meteorological data such as short-term emergency meteorological observation and mobile meteorological monitoring. Widely used in meteorology, agriculture and forestry, environmental protection, oceans, airports, ports, scientific expeditions, campus education and other fields
The device uses a seven-element integrated sensor that can conduct real-time observations of meteorological elements such as wind speed, wind direction, air temperature, humidity, atmospheric pressure, light, optical rainfall, etc. The sensor shell is made of imported ABS material, which is more effective against environments such as salt spray and provides protection. The grade reaches IP65 or above.
2. Product features
1. The ultrasonic probe is hidden in the top cover to avoid interference from rain and snow accumulation and avoid obstruction by natural wind.
2. The principle is to emit continuous variable frequency ultrasonic signals and detect wind speed and direction by measuring the relative phase.
3. Seven-element integrated sensor of wind speed, wind direction, air temperature, humidity, atmospheric pressure, light, and optical rainfall
4. Standard three transmission methods: GPRS, Bluetooth, and 485 to USB
5. Aluminum alloy bracket, retractable
6. Shock-absorbing and protective trolley case, easy to carry
3. Technical parameters
1. Wind speed (standard configuration): Range: 0~60m/s; Resolution: 0.01m/s; Accuracy: ±0.1m/s
2. Wind direction (standard configuration): Range: 0~360°; Resolution: 1°; Accuracy: ±2°
3. Air temperature (standard configuration): Range: -40-60℃; Resolution 0.01℃; Accuracy: ±0.3℃ (25℃)
4. Air humidity (standard configuration): Range: 0-100%RH; Resolution: 0.01%RH; Accuracy: ±3%RH
5. Atmospheric pressure (standard configuration): Range: 30-110Kpa; Resolution 0.01Kpa; Accuracy: ±0.25%
6. Optical rainfall (standard configuration): range: 0-4mm/min; resolution 0.01mm; accuracy: ≤±4%
7. Illuminance (standard configuration): Range: 0-20W LUX; Resolution 1lux; Accuracy: ±10% (<500 micrograms)
8. Other optional elements: piezoelectric rainfall, TSP, carbon monoxide, sulfur dioxide, nitrogen dioxide, ozone, PM2.5, PM10, noise, total radiation, carbon dioxide, oxygen content, hydrogen sulfide, hydrogen, chlorine, ammonia, Hydrogen chloride, hydrogen cyanide, hydrogen fluoride, phosphine, chlorine dioxide, ethylene oxide, nitric oxide, hydrogen peroxide, tetrahydrothiophene, formaldehyde, VOC, catalytic combustion combustible gas
9. Can have built-in Bluetooth and can be connected to Android phones
10. Wired transmission possible: 485 to USB, can be directly connected to a computer
11. Data storage: no less than 500,000 items
12. Power consumption: 1.5W
13. Lithium battery: removable lithium battery pack, capacity 12000maH, battery life ≥50h, built-in power display function
14.Total weight: ≤5kg
15. Installation time: single person, can complete the installation within 2 minutes
16. Bracket: Aluminum alloy bracket, foldable and telescopic
17. Equipped with shock-absorbing and protective instrument box (optional pull rod)
18. The complete machine obtained the provincial CMA test report
19. The production enterprise is a 3A credit enterprise

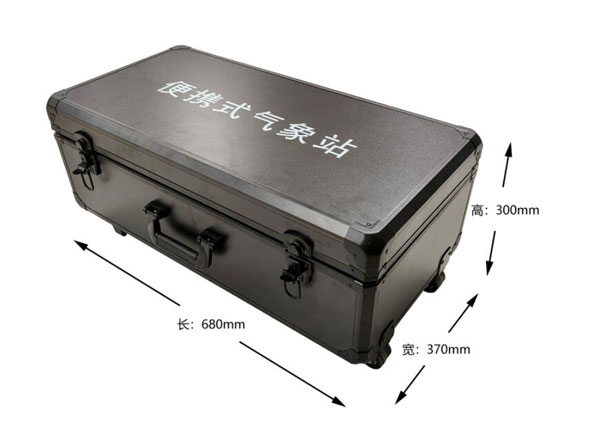

4. Outer box size chart
5. Product details
6. Product size chart
7. Introduction to PC software
1. PC stand-alone version of data receiving, storage, viewing and analysis software
2. Support serial port data reception, processing and display
3. Support json string, modbus485 and other communication methods
4. The storage time can be set by oneself, and the collection time can be set by oneself in the modbus485 collection mode.
5. Support self-service adding, deleting, and modifying protocols, names, icons, etc. of monitoring parameters
6.Support data post-processing function
7. Supports external running of javascript scripts
8. Introduction to Android APP
1. Android stand-alone version of data receiving, storage, viewing and analysis software
2.Support Bluetooth data reception
3. After the mobile phone is asleep, the software receives and processes it in the background
4. JSON data automatically adds devices, and modbus devices support scanning QR codes to add devices.
5. Supports historical data viewing, analysis, and table export, and supports curve display and single data point viewing.
6.Support data post-processing function
7. Supports external running of javascript scripts
9. Introduction to cloud platform
1. CS architecture software platform supports direct observation on mobile phones and PC browsers without installing additional software.
2. Support multiple accounts and multiple devices to log in
3. Support real-time data display and historical data display dashboard
4. Cloud servers and cloud data storage are stable and reliable, easy to expand and load balanced.
5. Support SMS alarm and threshold setting
6. Support map display and view device information
7. Support data curve analysis
8. Support data export table format
9. Support data forwarding, HJ-212 protocol, TCP forwarding, http protocol, etc.
10.Support data post-processing function
11.Support external running of javascript scripts
