Model：WX-FB01S
Product Price: Electronic Negotiation
Product brand: Wanxiang Environment
1.Product introduction of<LCD screen explosion-proof weather station<
LCD screen explosion-proof weather station is also called explosion-proof weather station, explosion-proof automatic weather station. LCD screen explosion-proof weather station has explosion-proof function and is suitable for places that require weather monitoring in flammable and explosive environments. It can measure multiple meteorological parameters at the same time. Provide comprehensive environmental monitoring data to help users understand real-time meteorological conditions.
The WX-FB01S explosion-proof weather station is an integrated weather station developed and produced by Shandong Wanxiang Environmental Technology based on market demand and targeted at special places such as chemical plants and oil depots.It integrates data collection, storage, display and communication, and connects with the background host computer management software or central control room PLC and DCS through wired communication to process and analyze data.
This explosion-proof weather station adopts the design concept of high protection levels such as anti-corrosion, explosion-proof, waterproof, shock-proof, and dust-proof, and can meet the use needs of chemical plants, oil depots, tunnels, mines, etc.
2. Product features
1. The ultrasonic probe is hidden in the top cover to avoid interference from rain and snow accumulation and avoid obstruction by natural wind.
2. The principle is to emit continuous variable frequency ultrasonic signals and detect wind speed and direction by measuring relative phase.
3. Five-element integrated sensor of wind speed, wind direction, air temperature, humidity and atmospheric pressure
4. 485 connected to DCS transmission
3. Technical parameters
1. Wind speed: 0~60m/s (±0.1m/s); (Invention patent, patent number ZL 2021 1 0237536.5)
2. Wind direction: 0~360° (±2°); (Invention patent, patent number ZL 2021 1 0237536.5)
3. Air temperature: -40℃～85℃ (±0.3℃); (Calibration certificate of Beijing Meteorological Bureau)
4. Air humidity: 0~100%RH (±2%RH); (Calibration certificate of Beijing Meteorological Bureau)
5. Atmospheric pressure: 300-1100hpa (±0.25%); (Calibration certificate of Beijing Meteorological Bureau)
6. Screen: 7-inch LCD screen, high-definition color screen;
7. Stand-alone version data storage: no less than 500,000 items;
8. Power consumption: 7.6W
9. The manufacturer has Ex ia IIC T4 Ga high-level explosion-proof certificate
10. The equipment passed GB3836.1-2010 Explosive Environment Part 1: General Requirements for Equipment
11. The equipment passes GB3836.4-2010 Explosive Environment Part 4: Equipment protected by intrinsically safe “i”
4. Functional features
1. Integrated structural design, easy to install and disassemble;
2. The sensor shell is made of ASA material, which is corrosion-resistant and oxidation-resistant;
3. Supports customization and can flexibly configure monitoring elements according to user needs;
4. Two display modes: PC and LCD screen, wired transmission
5. Five-proof design: waterproof, explosion-proof, dust-proof, shock-proof, and anti-corrosion;
6. Standard modbus protocol supports docking of multiple backend protocols to provide convenience to customers;
8. Low power consumption design, AC220V power supply;

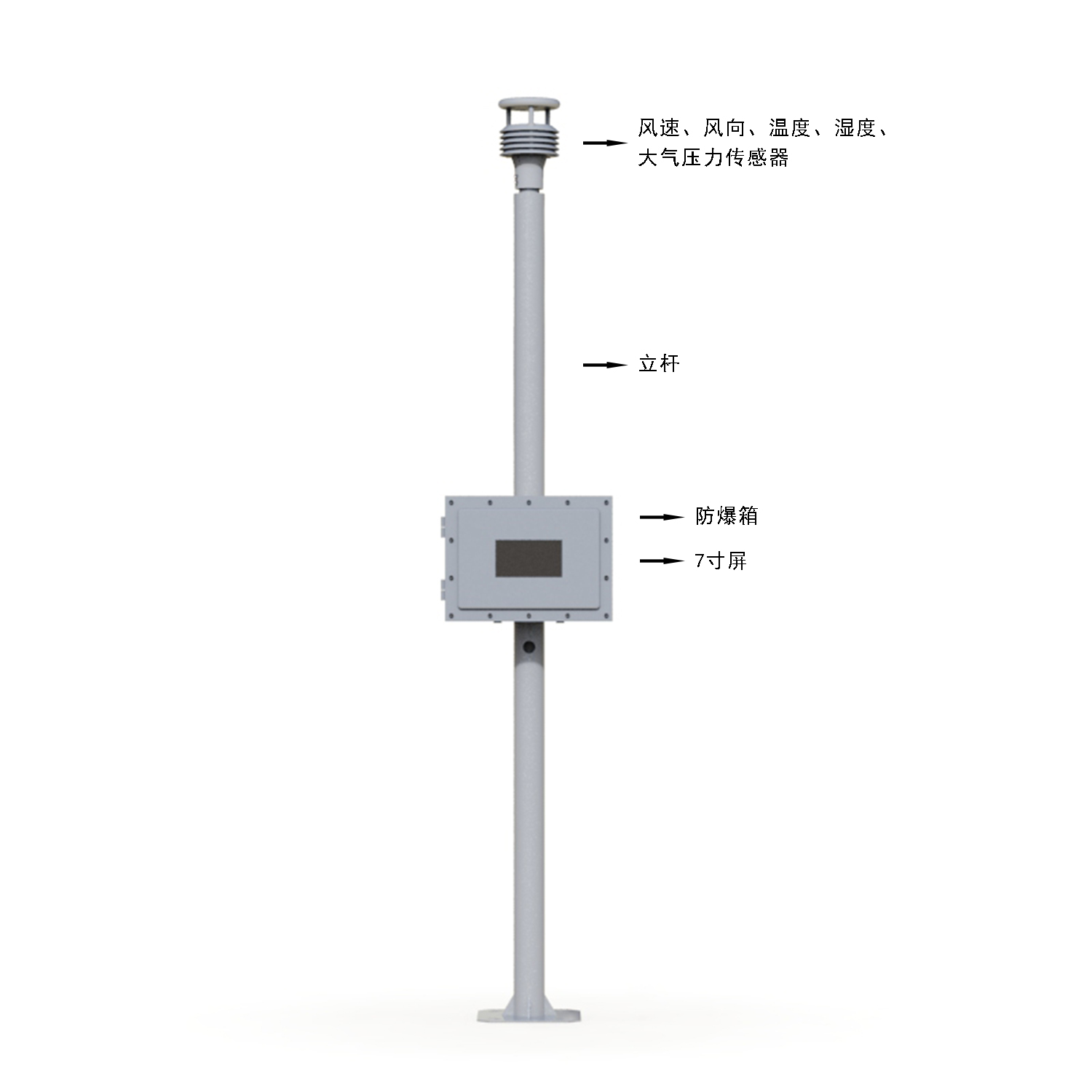

5. Product Structure Chart

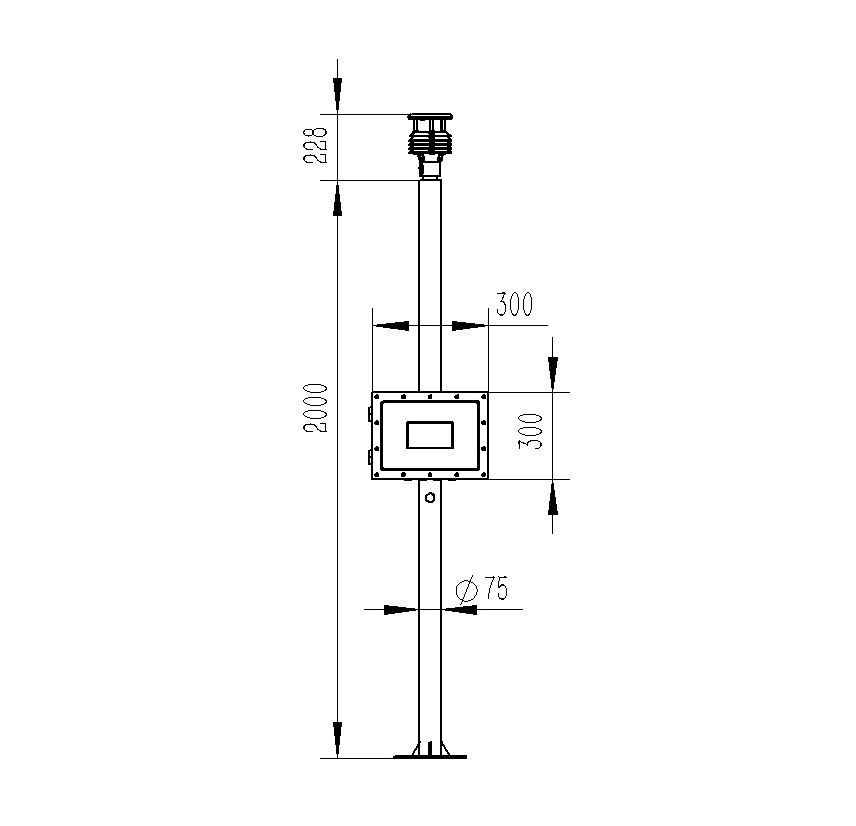

6. Product size chart
7. Introduction to PC software
1. PC stand-alone version of data receiving, storage, viewing and analysis software
2. Support serial port data reception, processing and display
3. Support json string, modbus485 and other communication methods
4. The storage time can be set by oneself, and the collection time can be set by oneself in the modbus485 collection mode.
5. Support self-service adding, deleting, and modifying protocols, names, icons, etc. of monitoring parameters.
6. Support data post-processing function
7. Support external running of javascript scripts
8. Equipment installation
1. Confirm the on-site working conditions and set the installation plan by our company.
2. Simple installation, no need for professionals to operate, installation can be done with remote guidance
3. Users do not need to prepare their own parts. The company will configure the equipment carefully and the equipment will be installed and ready to use upon arrival.
