Model：WX-LSZ04
Product Price: Electronic Negotiation
Product brand: Wanxiang Environment
Multi parameter water quality monitoring station is an advanced water quality monitoring device that integrates multiple sensors and data analysis technologies. It can monitor water quality parameters in real time and help us understand the real-time status of water bodies
1. Product Introduction
The LSZ04 pole-type online water quality monitoring station is centered on water quality sensors (water temperature, conductivity, PH, dissolved oxygen). It monitors and analyzes various water quality parameters and transmits the collected data to the platform to remotely view real-time data and remotely manage equipment. At the same time, it can effectively alarm and intelligently process water quality trends. It can also express the comprehensive index of water quality based on the correlation and combination between real-time water quality parameters, providing customers with a large amount of objective, detailed and effective data, which is of practical significance for solving water pollution problems.
At present, LSZ04 water quality monitoring stations are widely used in aquaculture, sewage treatment, reservoirs, rivers and other places.
2. Product Features
1. Low power collector: static power consumption is less than 50uA
2. Standard GPRS networking, support for extended Bluetooth and wired transmission
3.Support modbus485 sensor expansion
4. Solar charging management MPPT automatic power point tracking
5. 1.5m carbon steel support
6. SMS alarm, send SMS to the designated mobile phone after exceeding the limit
7. ABS material protective box, corrosion-resistant, anti-oxidation, waterproof grade IP66
8. No additional procedures are required, such as wiring, station building, reagent preparation, and personnel post-maintenance. Compared with the national standard water quality monitoring station, it is more convenient to use and install, and the observation data is more intuitive
9. The system can integrate integrated meteorological environment monitoring data
3. System composition

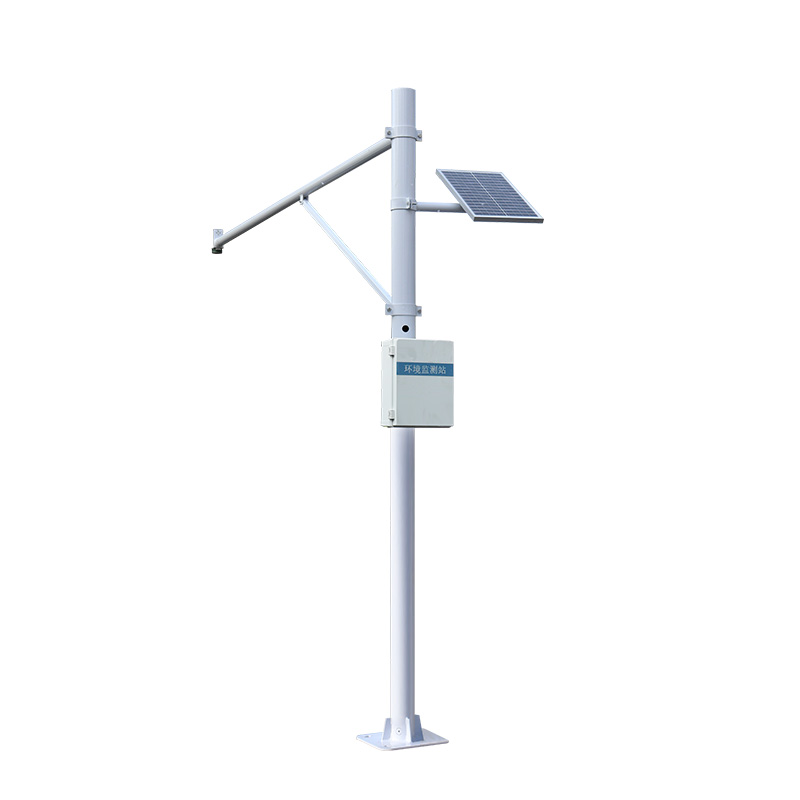

The pole-type online water quality monitoring system is mainly composed of a basic support (including poles, ground cages, ABS anti-corrosion and corrosion-resistant protective box), a power supply system, a monitoring host, water quality sensors, and a cloud platform.
4. Technical Parameters
Serial numbernameMeasuring rangeMeasuring principlemeasurement accuracyIs it standard?Remark
1temperature0~50℃High-precision digital sensor±0.3℃?
2pH0~14 (ph)Electrochemistry (Salt Bridge)± 0.1PH?
3ORP-1500mv~1500mvElectrochemistry (Salt Bridge)± 6mv
4Conductivity0~5000uS/cmContact electrode method± 1.5%?
5Turbidity0~40NTU (low turbidity)Scattered light method± 1%
Low turbidity can be customized
0~1000NTU (medium turbidity)Scattered light method± 1%
Medium turbidity can be customized
0~3000NTU (high turbidity)Scattered light method± 1%
Default
6Dissolved oxygen0~20mg/LFluorescence lifetime method± 2%?
7Ammonia nitrogen0~100mg/lIon Selective Electrode Method±1mg
8cod0~500mg/LUV254 absorption method±5%
The default is hair, cod turbidity integrated; with automatic cleaner to prevent biological attachment and avoid light window pollution to ensure long-term monitoring is still stable; automatic cleaning time and cleaning times can be set, power consumption 0.7W
Turbidity0~400NTUScattered light method± 1%
9Suspended Matter0~2000mg/LScattered light method±5% (depending on sludge homogeneity)
10Chlorophyll0~400ug/LFluorescence methodR2>0.999
Equipped with an automatic cleaner to prevent biological attachment and avoid light window pollution to ensure long-term monitoring stability; the automatic cleaning time and cleaning frequency can be set, power consumption is 0.7W
5. Introduction to Cloud Platform
1.CS architecture software platform, supports direct observation via mobile phone and PC browser, no need to install additional software.
2.Support multiple accounts and multiple devices to log in
3.Support real-time data display and historical data display dashboard
4. Cloud servers and cloud data storage are stable and reliable, easy to expand, and load balanced.
5.Support SMS alarm and threshold setting
6.Support map display and view device information.
7.Support data curve analysis
8.Support data export in table format
9.Support data forwarding, HJ-212 protocol, TCP forwarding, http protocol, etc.
10. Support data post-processing function
11.Support external running of javascript scripts
