update time ：2025-08-29
Model：WX-LSZ06
Product Price: Electronic Negotiation
Product brand: Wanxiang Environment
The river and stream water quality monitoring system is an integrated solution that combines sensor technology, Internet of Things technology, big data analysis, and intelligent early warning functions. is specifically designed to monitor the water quality of natural water bodies such as rivers and streams in real time, providing critical data support for water resource management, environmental protection, and public.
1. Product Introduction

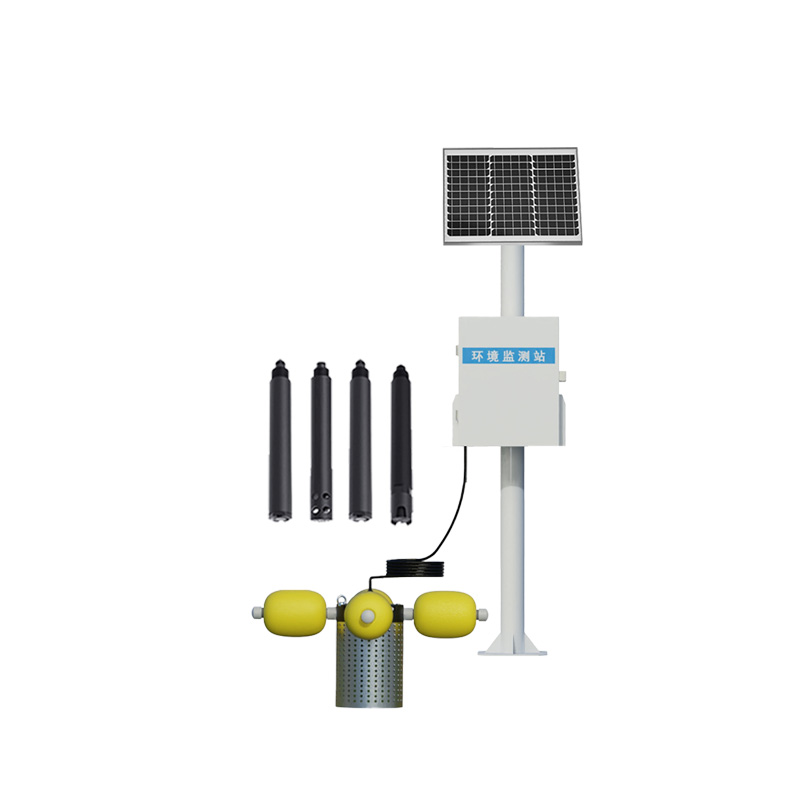

The LSZ06 vertical post water quality online monitoring station is centered on water quality sensors (water temperature, conductivity, PH, dissolved oxygen, ammonia nitrogen, turbidity). Through monitoring and analyzing various water quality parameters, and transmitting the collected data to the platform end, real-time data can be remotely viewed and remote management of equipment can be performed. At the same time, effective over限 alarms and intelligent processing are carried out for the trend of water quality changes. It can also express the comprehensive index of water quality based on the correlation combination of real-time water quality parameters, providing a large number of objective and detailed effective data for customers, which has practical significance for solving water pollution problems.
At present, the LSZ06 type water quality monitoring station is widely used in aquaculture, sewage treatment, reservoirs, rivers and other places.
2. Product features
1. Low power consumption collector: static power consumption less than 1mA
2. Standard GPRS connectivity, supports extended Bluetooth, wired transmission
3. Support modbus485 sensor expansion
4. Solar charging management MPPT Automatic Power Point Tracking
5.1.5m carbon steel support
6. SMS alarm, send a text message to a specified mobile phone after exceeding the limit
7.Stainless steelMaterial protection box, corrosion-resistant, anti-oxidation, waterproof grade IP66
8. No need for wiring, construction of station houses, drug allocation, and personnel maintenance after installation, making it more convenient to use and install than national standard water quality monitoring stations, and the observation data is more intuitive.
9. The system can integrate integrated meteorological environment monitoring data.
Three, System Composition
The vertical water quality online monitoring system is mainly composed of a base bracket (including a vertical pole, a ground cage, an ABS anti-corrosion and corrosion-resistant protective box), a power supply system, a monitoring host, a water quality sensor, and a cloud platform.
Four, Technical Parameters
| No. | Name | Measurement range | Measurement principle | Measurement accuracy | Is it standard equipment | Note |
| 1 | Temperature | 0~50℃ | High-precision digital sensor | ±0.3℃ | ? | |
| 2 | pH | 0~14 (ph) | Electrochemistry (salt bridge) | ± 0.1PH | ? | |
| 3 | Open Research Platform | -1500mv~1500mv | Electrochemistry (salt bridge) | ± 6mv | ||
| 4 | Electrical conductivity | 0~5000uS/cm;0~10000uS/cm | Contact electrode method | ± 1.5% | ? | |
| 5 | Turbidity | 0~40NTU(Low turbidity) | Scattering light method | ± 1% | Low turbidity customizable | |
| 0~1000NTU (moderately turbid) | Scattering light method | ± 1% | Customizable medium turbidity | |||
| 0~3000NTU (High Turbidity) | Scattering light method | ± 1% | ? | Default send | ||
| 6 | Dissolved oxygen | 0~20mg/L | Fluorescence lifetime method | ± 2% | ? | |
| 7 | Ammonia nitrogen | 0~100mg/l | Ion selective electrode method | ±1mg | ? | |
| 8 | cod | 0~500mg/ L | UV254 absorption method | ±5% | Default discharge, COD turbidity integrated; with an automatic cleaner to prevent biological attachment, avoid window pollution, and ensure long-term monitoring stability; can set the automatic cleaning time and the number of cleanings, power consumption 0.7W | |
| Turbidity | 0~400NTU | Scattering light method | ± 1% | |||
| 9 | Suspended matter | 0~2000mg/L | Scattering light method | ±5% (depending on the homogeneity of the sludge) | ||
| 10 | Chlorophyll | 0~400ug/L | Fluorescence method | R2>0.999 | With an automatic cleaner to prevent bio附著, avoid window pollution, to ensure long-term monitoring stability; can be set to automatic cleaning time and number of cleanings, power consumption 0.7W |
5. Introduction to the Cloud Platform
1. CS architecture software platform, supports mobile phones, PC browsers to observe directly, no need to install additional software.
2. Support multiple accounts, multiple devices login
3. Support for real-time data visualization and historical data visualization dashboards
4. Cloud servers, cloud data storage, stable and reliable, easy to expand, load balancing.
5. Support for SMS alarm and threshold setting
6. Support for map display, view device information.
7. Support data curve analysis
8. Support for data export in spreadsheet format
9. Support data forwarding, HJ-212 protocol, TCP forwarding, http protocol, etc.
10. Support for data post-processing functions
11. Support for external JavaScript scripts
