Intelligent Agriculture Four Situation Monitoring System

update time ：2025-08-29

Model：WX-4Q

Product Price: Electronic Negotiation

Product brand: Wanxiang Environment

The intelligent agriculture four situation monitoring system is an agricultural production system that integrates environmental monitoring and precise adjustment. It can monitor and manage different agricultural production environments and objects, monitor the soil, insect situation, meteorology and other production environments in farmland, and promote the refinement, efficiency and modernization of agricultural production.

phone ：15666889815 QQ：1950883583

Related recommendations

product details

Intelligent Agriculture Four Situation Monitoring System System Background

With the development of smart agriculture, technologies such as the Internet, big data, and artificial intelligence have gradually been applied to all aspects of agricultural production, greatly improving the allocation and utilization efficiency of various production factors such as labor and capital.

With the help of the Internet of Things, smart agriculture has built an agricultural production system that integrates environmental monitoring and precise regulation. It can monitor and supervise different agricultural production environments and objects, detect the physical parameters of the environment through sensing equipment, and conduct real-time dynamic monitoring of production environment conditions such as soil, insect infestation, and weather to ensure that they meet agricultural production environment standards. The application of these new technologies will greatly improve the quality of agricultural products to meet market demand, achieve effective docking of supply and demand, and promote the refined, efficient, and modern development of agricultural production.

Intelligent Agriculture Four Situation Monitoring System System composition

Vientiane Environmental Agricultural Four Conditions Monitoring System (soil moisture, insect pests, climate, seedling conditions) consists of terminal equipment (tubular soil moisture monitor, insect pests monitoring instrument, weather station, video monitoring) and agricultural four conditions monitoring platform. The system can monitor and manage the soil moisture conditions (soil temperature, soil moisture, soil pH value, etc.), pest and disease conditions (pest and disease types, pest and disease numbers, etc.), and climate conditions (air temperature, humidity, rainfall, light intensity, carbon dioxide, wind speed and direction, and other environmental parameters) of agricultural fields. The data can be uploaded to the monitoring platform via GPRS/4G or network port. Management personnel can remotely view the data and trends of various environmental parameters in real time, saving manpower, and make corresponding adjustments based on data feedback to ensure the good growth of crops and help agricultural production.

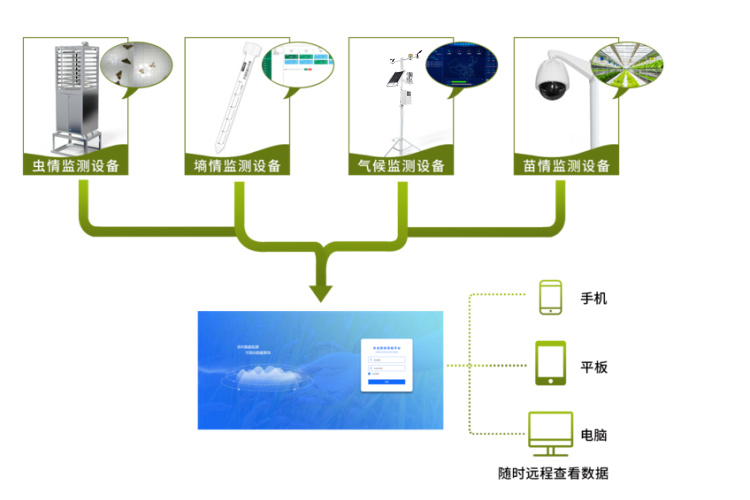

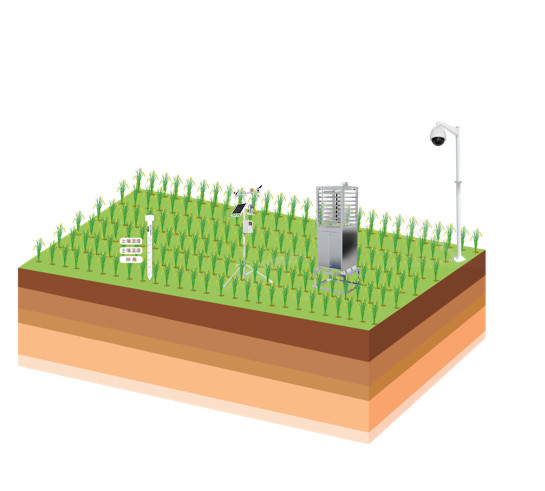

Topological diagram of agricultural four-condition monitoring system

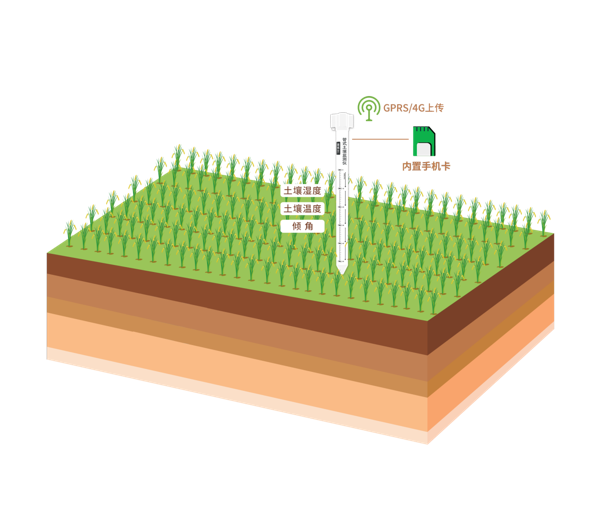

Tubular soil moisture monitor

The tubular soil moisture monitor is a sensor based on the dielectric constant principle and supports 10-30V wide voltage charging.

The outer shell is made of PVC plastic pipe, which emits high-frequency detection waves of nearly 1 GHz inside, which can penetrate the plastic pipe and effectively sense the soil environment.

Unaffected by salt ions in the soil, agricultural activities such as fertilizers, pesticides, and irrigation will not affect the measurement results, and the data is accurate. The sensor's electrodes do not directly contact the soil, avoiding electrical interference with the soil and plants in the soil.

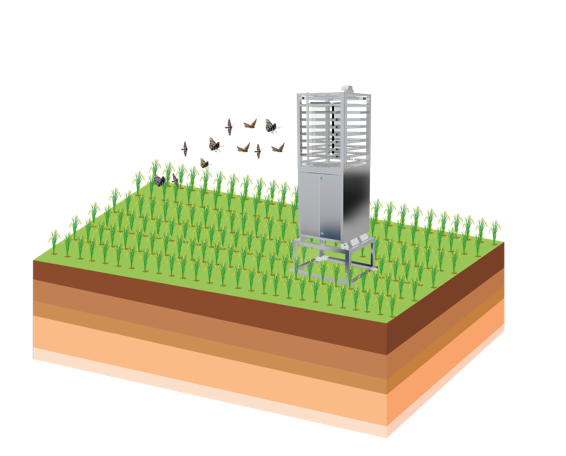

Insect Monitoring Instrument

Utilizing modern optical, electrical, numerical control and other technologies, the system automatically completes operations such as insect luring, insect killing, insect dispersion, photography, transportation, collection, and drainage.

The upper and lower layers of far-infrared insect treatment chambers have a mortality rate of no less than 98% and an insect completion rate of no less than 95% . The rain-insect separation technology is used to automatically separate rainwater from insects.

Adopt light control technology: turn off the lights and standby during the day, automatically turn on the machine for detection at night, and when working at night, the working state will not be changed by instantaneous strong light.

The insect-attracting lamp is surrounded by shutters to effectively prevent non-target large insects or debris such as leaves from entering the equipment and affecting insect identification.

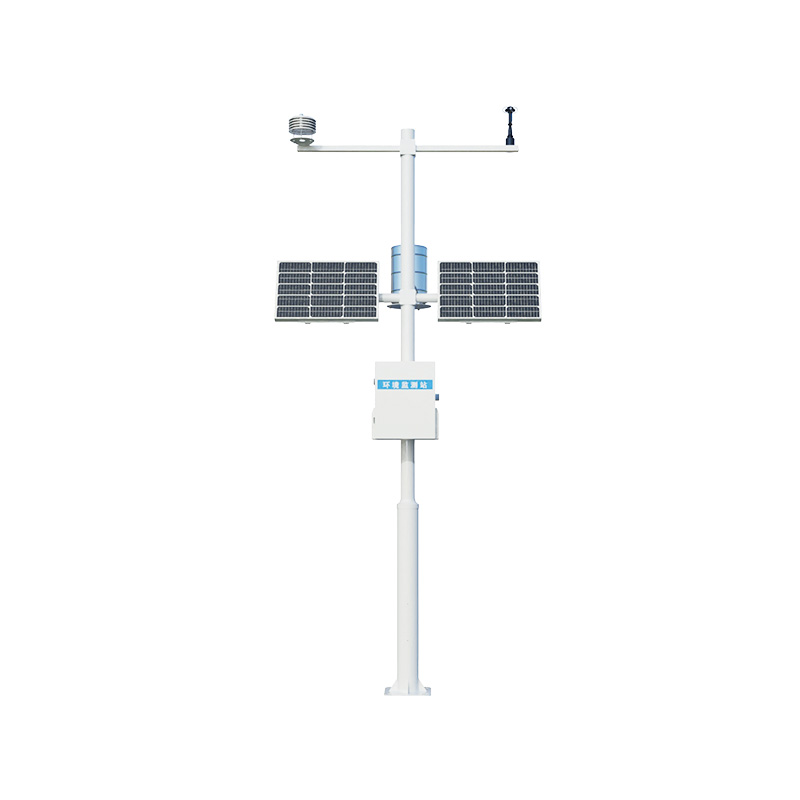

Weather Station

Video Surveillance

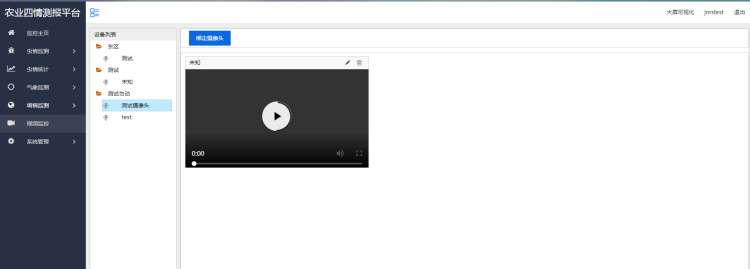

Video surveillance equipment can view dynamic images of agricultural fields in real time and upload them to the platform for viewing via the Internet.

Agricultural Four Conditions Monitoring Platform

1. Platform Introduction

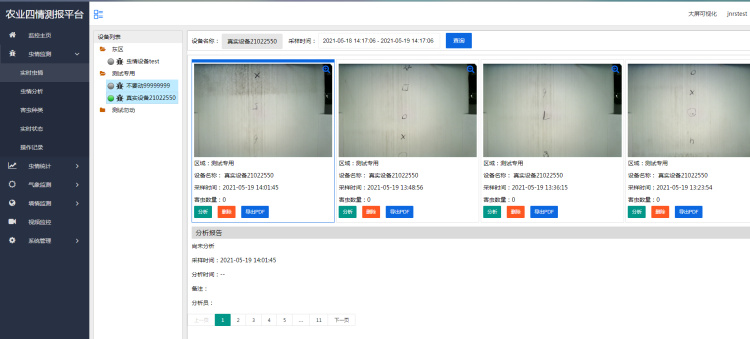

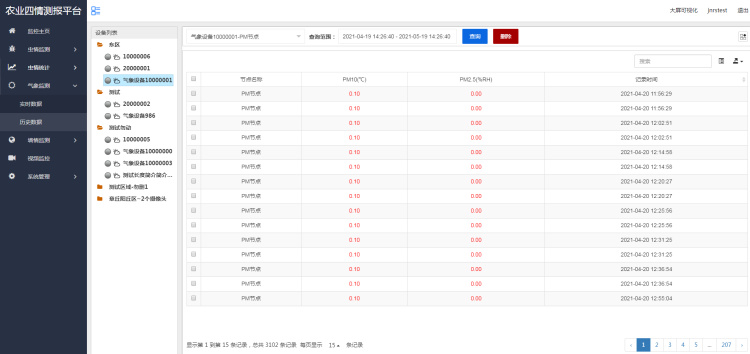

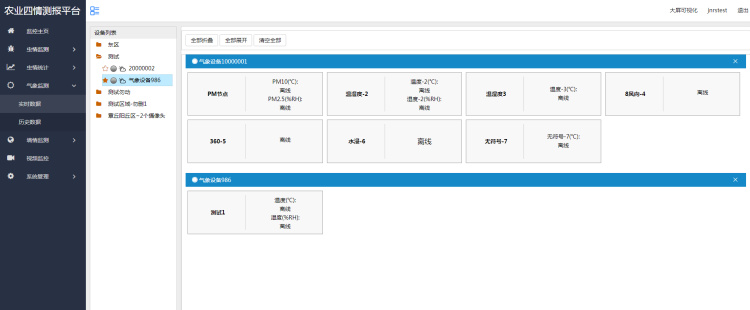

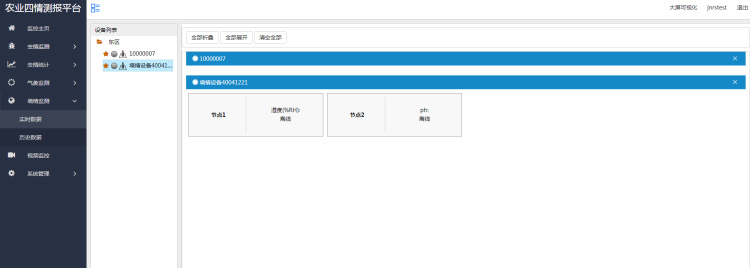

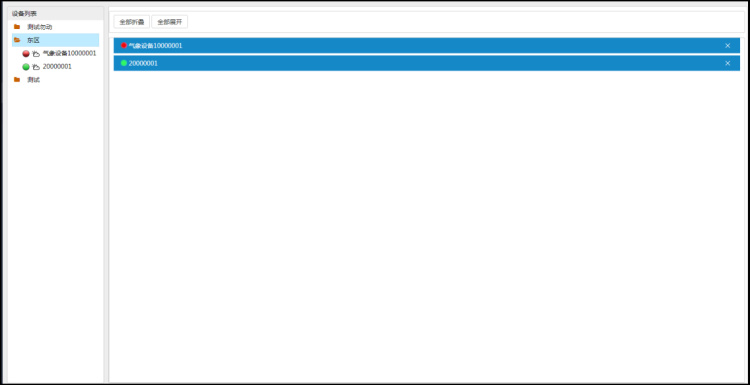

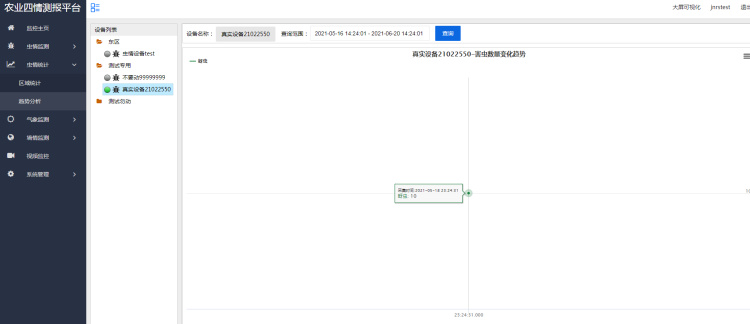

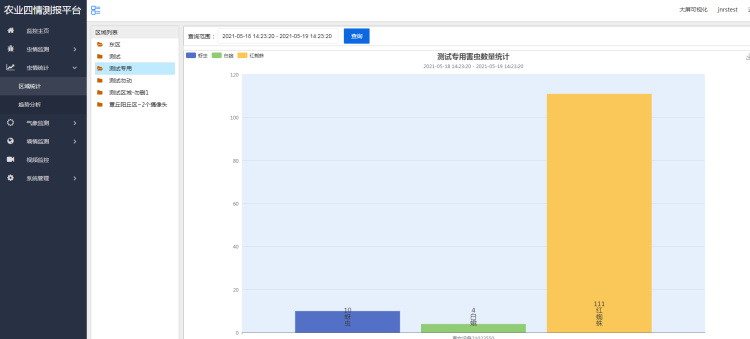

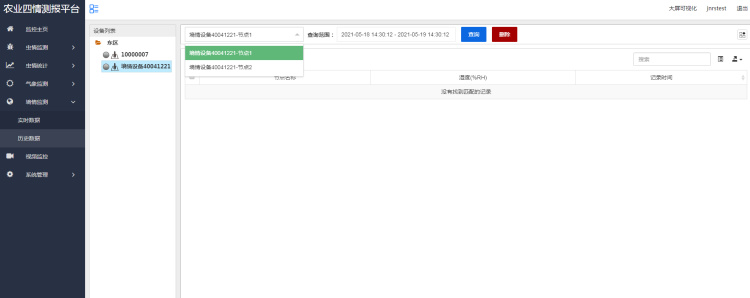

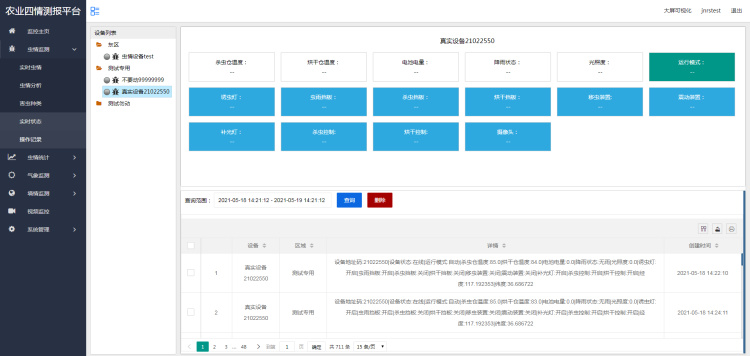

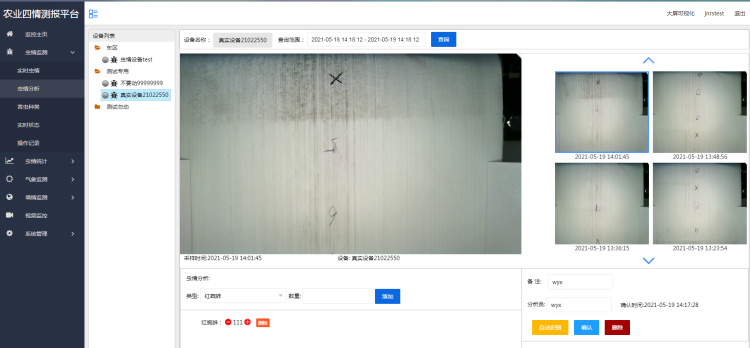

The agricultural four-situation monitoring platform is an online monitoring platform that integrates insect, weather, and soil moisture monitoring. Insect monitoring has the functions of automatic identification of AI pests, remote real-time viewing of insect conditions, online analysis of insect conditions, automatic identification of pest species, regional insect statistics, analysis of insect change trends, and equipment monitoring. Meteorological monitoring has the functions of remote real-time viewing of weather and online analysis of historical meteorological data. Soil moisture monitoring has the functions of remotely obtaining soil moisture data (such as soil temperature, humidity, water, and PH ) and online analysis of historical soil moisture data.

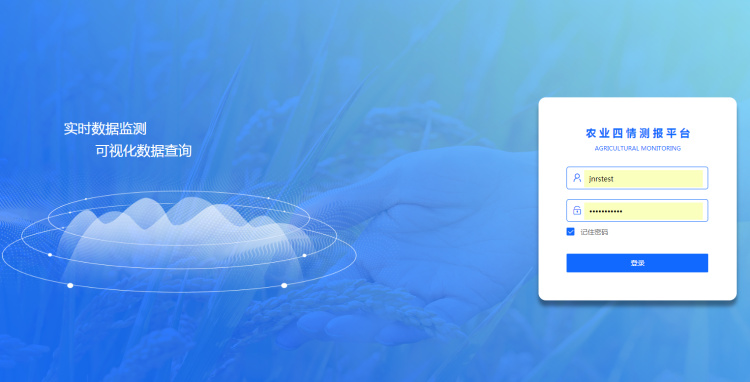

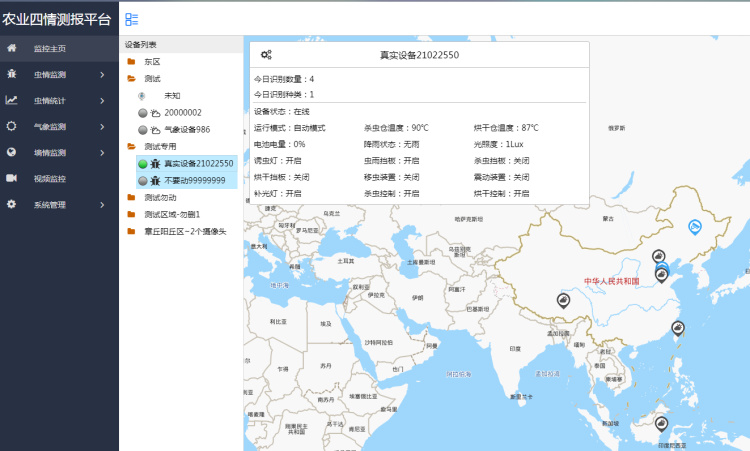

2. Monitor the home page

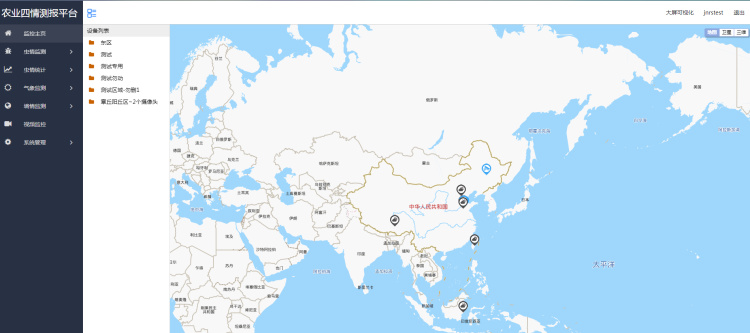

The monitoring homepage displays menu information such as equipment list, large-screen visualization, map display, etc. It also displays soil moisture, insect conditions, weather monitoring icons and equipment operating status.
