Model：WX-TK1
Product Price: Electronic Negotiation
Product brand: Wanxiang Environment
1.Product introduction offully automatic sky imager
The fully automatic sky imageris also called an all-sky imager and a cloud cover monitor. The fully automatic sky imager clearly records the distribution of cloud shapes and cloud cover in the daytime and automatically saves it to the machine for comparison and analysis. It can also Upload to the cloud and use AI algorithms to identify cloud information.
WX-TK1 is an all-sky automatic imaging system with a 175° field of view. It uses a clear language lens, a 5 million/20 million pixel high-quality CMOS sensor module, and can output a maximum image of 2560×1920 30fps.
WX-TK1 has a dynamic analysis function that can clearly record the cloud shape and cloud cover distribution in the sky during daytime, and automatically save it to the local machine for comparison and analysis. It can also be uploaded to the cloud to identify cloud information through AI algorithms.It can be widely used in meteorology, civil aviation, transportation, ocean research, smart cities and other fields.
2.Product features offully automatic sky imager
1.5 million/20 million pixel high-quality CMOS photosensitive module
2.175° field of view HD fisheye lens
3. Optimized cloud cover information processing and weather on-site identification technology
4.Support Ethernet and Wifi transmission
5. Can be connected to multiple cloud platforms
3.Technical parameters offully automatic sky imager
sensor | 5 million/20 million pixels, high quality CMOS photosensitive module |
main stream | 50Hz: 25fps (2560×1920, 2048×1536, 1280×960) |
Resolution and frame rate | 60Hz: 30fps (2560×1920, 2048×1536, 1280×960) |
Storage function | Support Micro SD/SDHC/SDXC card (128G) offline local storage, NAS (NFS, MB/CIFS are supported) |
Interface Protocol | ONVIF (PROFILES, PROFILEG), PSIA, CGI, ISAPI |
supporting agreement | TCP/IP, UDP, ARP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour |
Communication Interface | Ethernet, Wifi |
Mounting base size | φ50/52mm |
Protection level | IP67 |
Operating temperature | -10℃~40℃ |
Working humidity | Humidity less than 95% (no condensation) |
power supply | DC12V±25%//PoE (802.3af) |
Safety certification | CE |
shell material | Aluminum alloy |
Power consumption | 6.7W MAX |
size | 160×160×187 |
weight | 1900g |
Safety | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS |

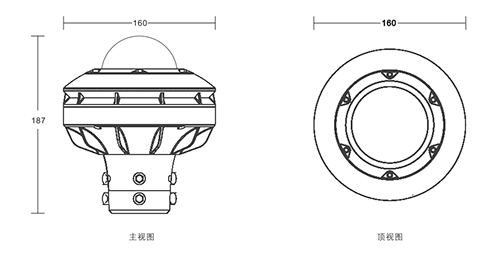

4. Product size chart
