Soil Erosion Monitoring Equipment

update time ：2025-09-02

Model：WX-JL1

Product Price: Electronic Negotiation

Product brand: Wanxiang Environment

Soil erosion monitoring equipment is an all-weather unattended runoff soil erosion monitoring equipment, which can automatically measure runoff, runoff sediment concentration and total runoff, and upload the sediment content and runoff collected by various sensors to the cloud platform in real time, which is convenient for users to retrieve, analyze and manage data anytime and anywhere, and provide scientific and accurate data support for soil and water conservation decision-making.

phone ：15666889815 QQ：1950883583

Related recommendations

product details

1. Product Introduction
In the monitoring of water and soil loss in the runoff field and small watersheds, traditional manual measurement of flow and sediment data has the problems of large workload, low efficiency, high labor cost, and large data errors. The automatic water and soil loss monitoring system has successfully realized the innovation of the traditional manual monitoring mode after years of technical research and a large number of field tests.
This system consists of a data collection main control machine, a sediment measurement sensor, and a明channel flow sensor. Among them, the components of the open channel flow sensor can automatically measure the runoff flow, and through the controller, the total runoff and instantaneous runoff data in different time periods are accurately calculated; The sediment measurement sensor, based on the characteristics of runoff change, collects the runoff sediment data in real time at the sand measurement port where the runoff is vertically distributed. The sensors work together, and the data collected is of key value to the analysis of water and soil loss.
The system uploads the sediment content and runoff collected by each sensor to the cloud platform in real time, so that users can access, analyze, and manage data anytime and anywhere, and provide scientific and accurate data support for water and soil conservation decision-making.
The working process of the sediment content sensor: The surface water enters the open channel or the Parshall flume through the water guide slot and obtains the instantaneous runoff data after passing through the open channel flow meter, and calculates the total runoff in a unit of time, and the water guide pipe collects the surface water and sends it to the main water tank. When the main water tank has enough capacity of the surface water to be tested for detection, the system starts and sends the surface water to be tested into the sample warehouse for detection. The sensor sends the collected data to the processor for processing to obtain the sediment content, and after obtaining the data, the sensor排es the internal sample through the drain pipe to prepare for the next sampling. The processor outputs to the external device through 485.
2. Product Features
1. All-weather unattended, automatic measurement: Runoff flow, runoff sediment content, total runoff.
2. Municipal power supply, all-weather unattended, automatic measurement of data.
3. It has the function of online real-time monitoring, display of dynamic process and curve of each measured parameter on the computer software, and the function of downloading historical data.
4. It can be freely set on the data management main control machine on site, and the sampling frequency and clock can be calibrated.
5. Good stability, self-developed high-precision, strong stability, and strong anti-environmental interference ability.
3. Technical Specifications

Runoff flow measurement
Resolution	0.1m3/h
Measurement accuracy	1% to 5% of the range (depending on the accuracy of the pool)
Blind spot	30～50cm
Sediment measurement
Measurement principle	Weighing method
Sampling frequency	1～99 minutes
Measurement range	0～500kg/m3;
Resolution	0.01kg/m3
Measurement accuracy	＜10%
General indicators
Communication methods	RS485
Work power	DC12V
Equipment power	＜15W
Work environment	Temperature: 0(No freezing)～50℃; Humidity: <95%(No dew);
Work life	＞1 year

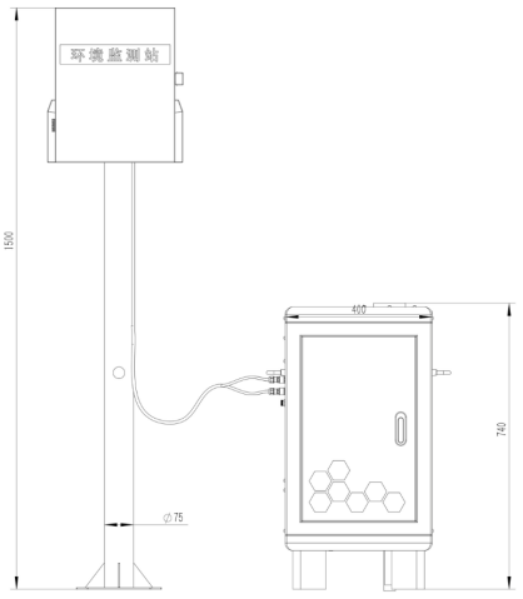

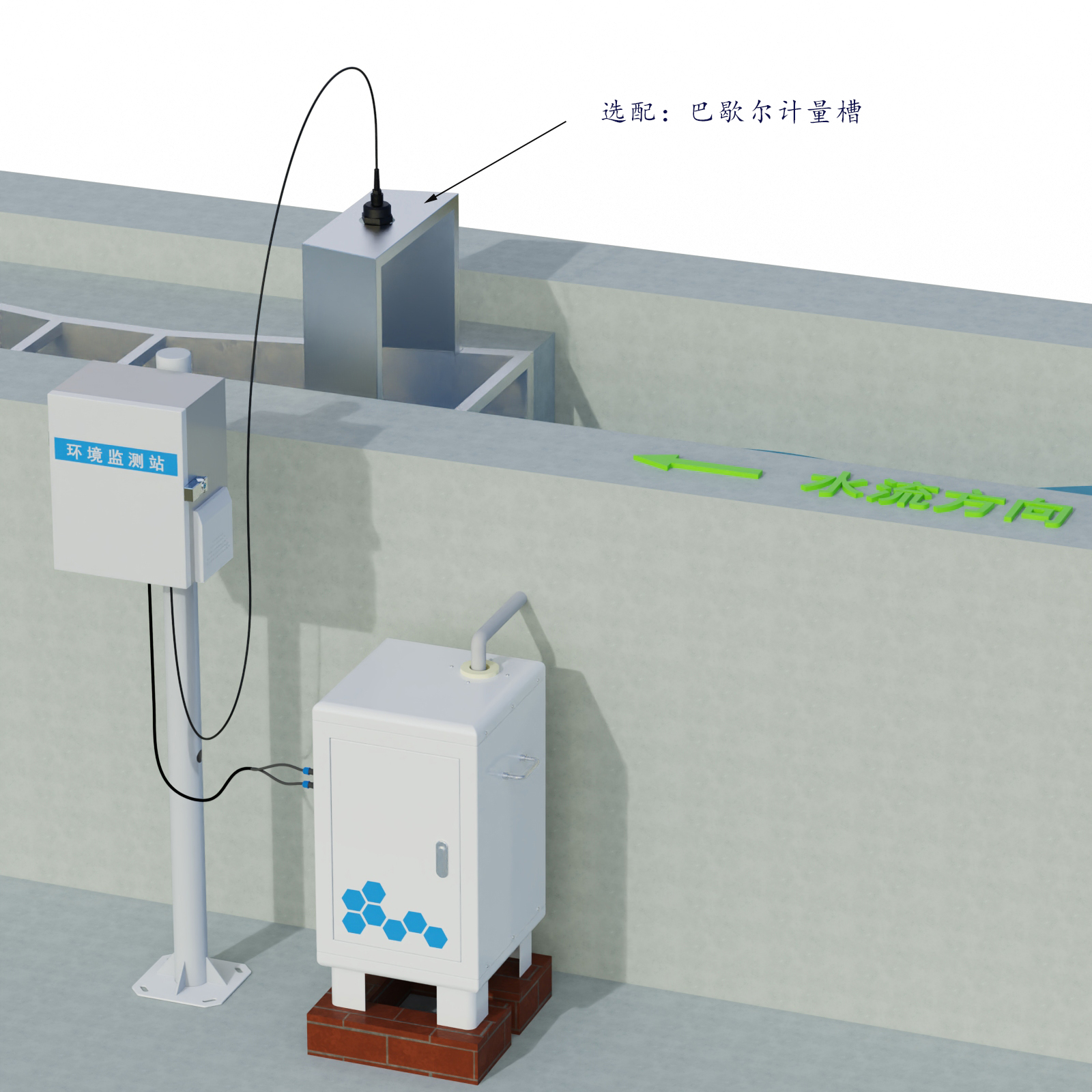

IV. Product dimensions and working schematic diagram

Soil Erosion Monitoring Equipment

Soil Erosion Monitoring Equipment
5. Maintenance and Care
Before the first use, please loosen the transport fixing rod, otherwise the equipment will not work properly.
Before the first use or re-use after a long period of inactivity, please re-calibrate with clean water and zero adjustment.
Check the water tank regularly, if there is a large amount of sludge deposition or foreign objects, please clear them, and the drain valve can be removed and washed.
Check the drain valve, sample bucket water inlet valve, sample bucket drain valve regularly to see if the water flow is unimpeded. If the water flow is weak or no water, you can cancel the control line on the drain valve and disassemble the drain valve for cleaning, and then re-install it.
Keep the interior of the equipment clean, and do not pile up items in the weighing part, and do not place items under the sample bucket.
When the temperature in the area where the equipment is located drops to zero degrees or lower, please drain the water inside the equipment to prevent ice from damaging the equipment.
When the sensor has been used for a long time and there is a measurement error, it can be calibrated and corrected by cooperating with the instrument. When the above methods for maintaining and caring for the sensor still cannot be calibrated and measured, it indicates that the sensor is damaged.
6. Introduction to the Cloud Platform
The Internet of Things Cloud Platform is a data receiving, processing, and analysis platform based on the Internet of Things communication technology. It supports the MQTT device communication protocol, supports the HJ212-2017 and HJ212-2005 environmental protection protocols, supports TCP/IP short link data forwarding, supports HTTP protocol data forwarding, supports real-time and historical data query and analysis, supports time series data wave display, supports data aggregation, supports real-time video access, and supports device maps, etc.
