Model：WX-YJ1
Product Price: Electronic Negotiation
Product brand: Wanxiang Environment
Rainfall monitoring stations, also known as automatic rainfall stations, can be used to monitor rainfall in real-time. Meteorological departments can accurately judge rainfall trends and potential flood disasters, timely issue warning information, and guide citizens to take preventive measures.
1. Rainfall monitoring stations Product Overview

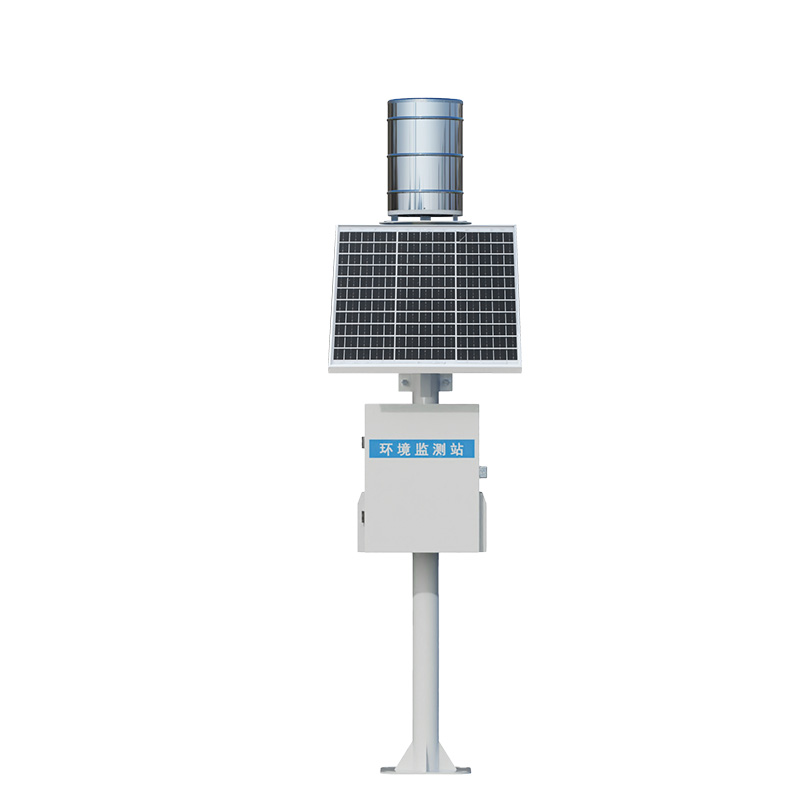

The WX-YJ1 rainfall monitoring station is a modern rainfall station based on the Internet of Things. It consists of a stainless steel rainfall sensor, a collector, a solar power supply system, a pole bracket, etc. The equipment can send rainfall data in the form of wireless remote transmission, and can send the data wirelessly and remotely to the monitoring platform. Log in to the Internet of Things platform to view real-time data and historical records. The rainfall data includes rainfall status, rainfall at each data collection interval, daily rainfall, weekly rainfall, monthly rainfall, annual rainfall, etc. The data sent to the platform can be directly exported to the desktop EXCEL table for users to make further data analysis and processing.
Rainfall monitoring stations can be widely used in meteorology, flood control, agriculture, hydrology and water conservancy, environmental protection, highways, airports and ports. They can provide raw data for meteorological stations, hydrological stations, agriculture and forestry, national defense, field monitoring stations and other relevant departments to measure parameters such as precipitation, precipitation intensity, and precipitation time; they can also provide real-time data with reference value for flood control, water supply scheduling, power stations, and reservoir water management.
2. Product Features
Low power collector: static power consumption is less than 50uA
Standard GPRS networking, support for extended Bluetooth, wired transmission
Support modbus485 sensor expansion
Solar charging management MPPT automatic power point tracking
SMS alarm, send SMS to the designated mobile phone after exceeding the limit
ABS material protective box, corrosion-resistant, anti-oxidation, waterproof grade IP66
3. Technical parameters:
1. Measurement range: Rain intensity 0～4mm/min
2. Measurement accuracy: ±0.2mm
3. Resolution: 0.2mm
4. Reporting form: wireless remote transmission
5. Rain-receiving diameter: φ200mm
6. Power supply: solar power supply
7. Solar power: 30W
8. Battery parameters: 20Ah
9. Bracket height: 1.5 meters
10. Working environment: -40℃～60℃
5. Introduction to Cloud Platform
CS architecture software platform supports direct observation through mobile phones and PC browsers without the need to install additional software.
Support multiple accounts and multiple devices to log in
Support real-time data display and historical data display dashboard
Cloud servers and cloud data storage are stable, reliable, easy to expand, and load balanced.
Support SMS alarm and threshold setting
Support map display and device information viewing.
Support data curve analysis
Support data export in table format
Support data forwarding, HJ-212 protocol, TCP forwarding, http protocol, etc.
Support data post-processing function
Support external running of javascript scripts
