Current location ：Home>>Product center>>Hydrological Monitoring>>Hydrological monitoring station

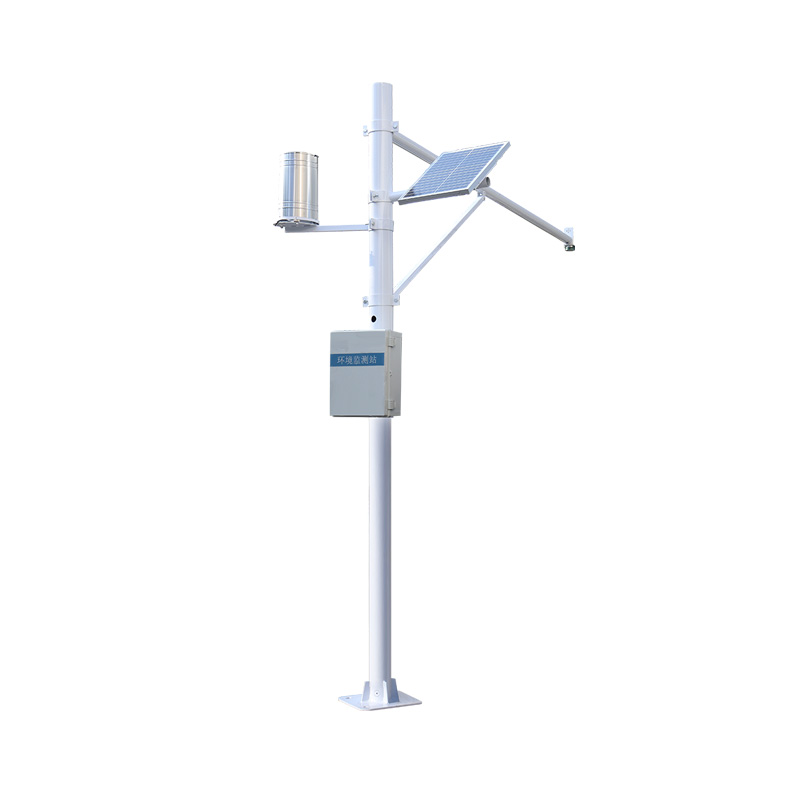

Hydrological monitoring station

update time ：2025-08-29

Model：WX-SWQX

Product Price: Electronic Negotiation

Product brand: Wanxiang Environment

Hydrological monitoring station is a meteorological station specially used to monitor hydrological information such as water level, discharge and rainfall.

phone ：15666889815 QQ：1950883583

Related recommendations

product details

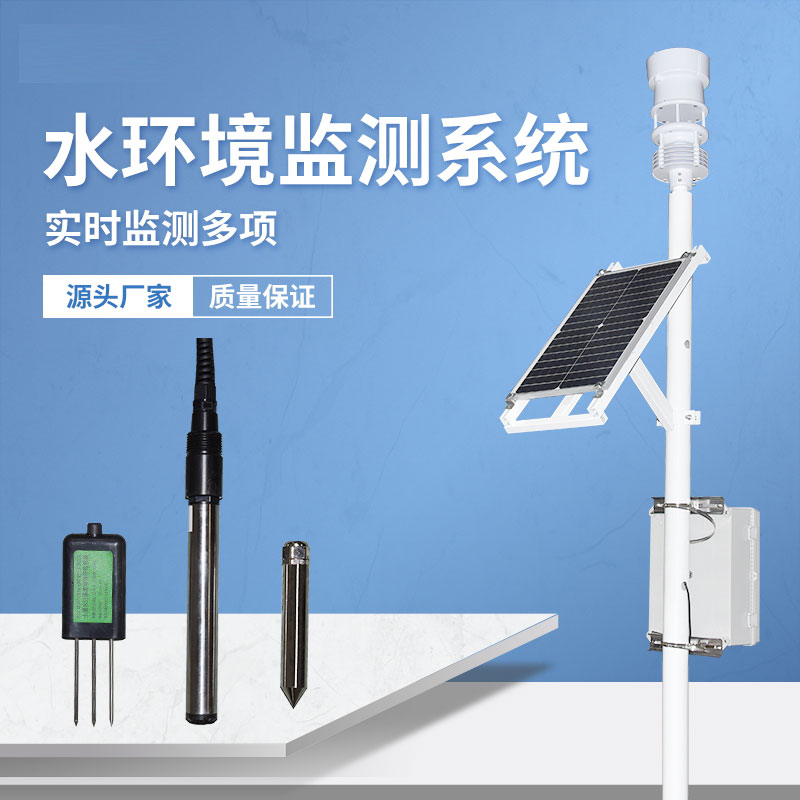

Hydrological monitoring stationproduct introduction:

Hydrological monitoring station, also known as water quality monitoring station, hydrological monitoring equipment, hydrological monitoring station is a weather station specially used to monitor water level, flow, rainfall and other hydrological information. It is important for flood prevention and disaster reduction, water resources management, environmental protection, etc. effect

The water environment monitoring system integrates data collection, storage, transmission and management, and consists of five parts: hydrological sensors, data collectors, pole brackets, solar power supply systems and computer software platforms. The data collector has hydrological data collection, real-time clock, hydrological data timing storage, parameter setting, friendly human-machine interface and standard communication functions. The system has a built-in large-capacity FLASH memory chip; a variety of communication interfaces can easily establish wired communication connections with computers. If the GPRS wireless communication module is optional, remote wireless connections between hydrological equipment and computer monitoring centers can also be achieved.

Technical Parameters:

name	Measuring range	resolution	Accuracy	Remark
Water temperature sensor	-50～80℃	0.1℃	±0.5℃	Standard configuration
conductivity sensor	0~200mS/m	0.2mS/m	＜±7%	Optional
Water quality pH sensor	0~14	0.01pH	±0.1pH	Optional
Turbidity sensor	0.1~3000NTU	0.1ug/l	<±5%FS	Standard configuration
Dissolved oxygen sensor	0~20mg/l	0.1mg/l	±3%	Optional
Flow velocity measurement	0.15~21m/s	±1mm/s	8.8mm/s	Optional
water level measurement	30m	<0.1%	±1-2mm	Optional
PM2.5	0-1000ug/m3	1ug/m3	±15% of measured value	Standard configuration
PM10	0-1000ug/m3	1ug/m3	±15% of measured value	Standard configuration
carbon monoxide	0-12.5ppm	≤10ppb	±1.5%FS	Optional
sulfur dioxide	0-2000ppb	≤10ppb	±1.5%FS	Optional
nitrogen dioxide	0-2000ppb	≤10ppb	±1.5%FS	Optional
ozone	0-2000ppb	≤10ppb	±1.5%FS	Optional
temperature	-40-60℃	0.01℃	±0.3℃（25℃）	Standard configuration
Relative humidity	0-100%RH	0.01%	±3%RH	Standard configuration
wind speed	0-60m/s	0.01m/s	(0-30m/s) ±0.3m/s or ±3% (30-60m/s) ±5%	Standard configuration
wind direction	0-360°	0.1°	±2°	Standard configuration
Atmospheric pressure	300-1100hpa	0.1hpa	±0.5hpa (0-30℃)	Standard configuration
rainfall	0-200mm/h	0.2mm	Error ±10%	Standard configuration
Illumination	0-100klux	10lux	3%	Optional
Solar radiation (photovoltaic/thermoelectric)	0-2000W/M2	1W	3% 5%	Optional
noise	30-130dB	0.1dB	±1.5dB	Standard configuration

Features:

1. Water temperature, water turbidity, optical rainfall, ultrasonic wind speed, ultrasonic wind direction, pm2.5, pm10, atmospheric pressure, noise, air temperature, air humidity and other parameters;

2. Low power collector: static power consumption is less than 50uA

3. GPRS networking, support extended RJ45 networking

4. Support extended sensor remote transmission, lora transparent transmission within 30km, and IoT card transmission beyond 30km

5. Supports LED screen display with a maximum compatibility of 32768px

6. Supports extended Android screen display, storage, and extended Android screen supports 2G data storage and U disk data export.

7. Support modbus485 sensor expansion

8. Solar charging management MPPT automatic power point tracking

9. Optional 2000mah-24Ah battery

10. Supporting IoT data display, storage and analysis platform
