update time ：2025-08-29
Model：WX-WQX2
Product Price: Electronic Negotiation
Product brand: Wanxiang Environment
Ultrasonic anemometer, also known as ultrasonic anemometer, can be widely used in urban environmental monitoring, wind power generation, meteorological monitoring, bridges and tunnels, navigation ships, airports and other fields without on-site maintenance or calibration.
1.Ultrasonic anemometer Product Introduction
Ultrasonic anemometer and wind direction sensor, also known as ultrasonic anemometer, ultrasonic wind speed and wind direction meter, is a wind speed and wind direction measuring instrument developed based on the principle of ultrasonic waves. It uses the time or frequency difference (Doppler shift) of the sound wave pulse sent to calculate the wind speed and wind direction. Our company, as a professional manufacturer of micro-meteorological instruments, has been committed to the research, development, production and sales of micro-meteorological instruments and meteorological environmental solutions. With a complete production chain, a strong technical team and a comprehensive marketing team, the ultrasonic wind speed and wind direction meter, five-element micro-meteorological instrument, six-element micro-meteorological instrument and small automatic meteorological station that we research and develop have been widely used in meteorological monitoring, urban environmental monitoring, wind power generation, navigation ships, civil aviation airports, bridges and tunnels and other fields. Customers are all over the country and have achieved good social and economic benefits.
Compared with traditional micro-meteorological instruments, our company's products overcome the need for high-precision timing devices, avoiding the problems of inaccurate measurement caused by sensor startup delay, demodulation circuit delay, and temperature changes.
The WQX2 type ultrasonic wind speed and wind direction sensor innovatively integrates the wind speed and wind direction into a highly integrated structure, achieving continuous online monitoring of meteorological parameters such as wind speed and wind direction outdoors. The two parameters are output to the user at one time through a digital communication interface.
It can be widely used in urban environmental monitoring, wind power generation, meteorological monitoring, bridges and tunnels, maritime ships, civil airports and other fields, and does not require on-site maintenance or calibration.
2. Ultrasonic anemometer Product features
1、Top cover hidden ultrasonic probe, avoiding the interference of rain and snow accumulation, avoiding natural wind coverage)☆
2、The principle is to emit a continuous variable frequency ultrasonic signal, and to detect the wind speed and direction by measuring the relative phase☆
3、Wind speed, wind direction two elements integrated ☆
4、Advanced sensing technology is adopted to measure in real time, without a starting wind speed☆
5、Strong anti-interference ability, with a watchdog circuit, automatic reset function, to ensure the stable operation of the system
6、High integration, no moving parts, zero wear and tear
7、Low maintenance, no on-site calibration required
8、ASA engineering plastic is used outdoors and does not fade for many years, and it is highly corrosion-resistant.
9、Product design output signal standard configuration is RS485 communication interface (MODBUS protocol); optional 232, USB, Ethernet interface, support real-time data reading ☆
10、Optional wireless transmission module can be equipped, with the minimum transmission interval of 1 minute
11、The probe is designed with a buckle, solving the problem of looseness and inaccuracy during transportation and installation.☆
12、Integrated design with low wear, long service life, and fast response.
Three, Technical Parameters
1. Wind speed: Measurement principle ultrasonic, 0～60m/s (±0.1m/s) resolution 0.01m/s;
2、Wind direction: Measurement principle ultrasonic, 0～360° (±2°); Resolution: 1°;
3、Power: 0.6W
4、The production enterprise has ISO quality management system, environmental management system and occupational health management system certification.☆
5、The production enterprise has a computer software registration certificate☆
6、The production enterprise is a 3A credit enterprise ☆

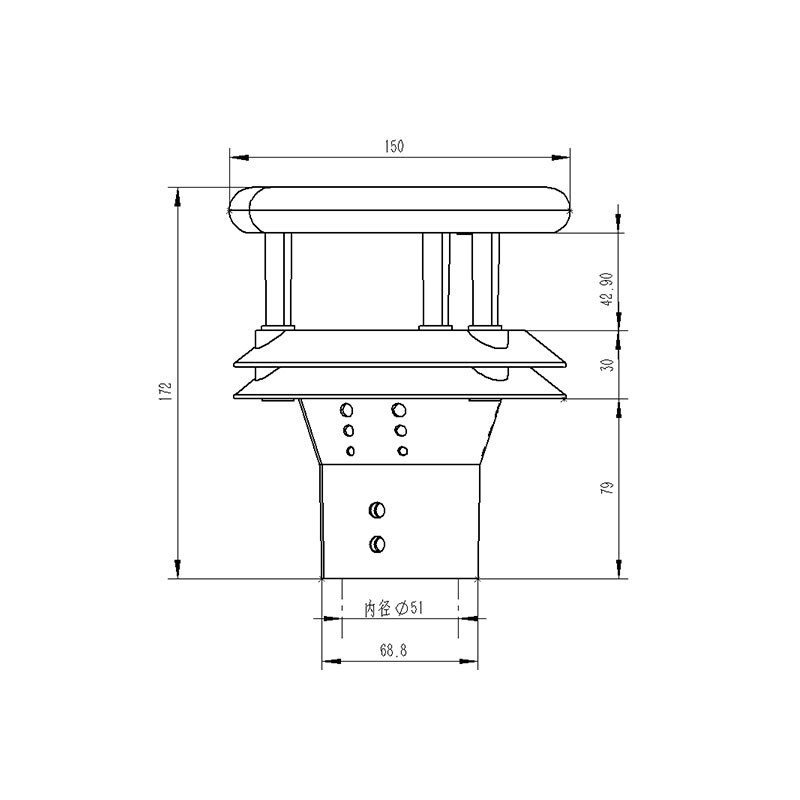

IV. Product Size Chart
5. Product structure diagram
1. Control circuit
2、Compass rose
3、Ultrasonic probe
4、UMBrella box
5、Base
6、Flange adapter head
6. Product wiring definition
| Definition | Note | |
| VCC | Power positive | DC12V |
| GND | Power ground | |
| 485A | RS485A | |
| 485B | RS485B |
