update time ：2025-08-29
Model：WX-NQ12
Product Price: Electronic Negotiation
Product brand: Wanxiang Environment
The agricultural environment monitoring system can monitor changes in the farmland environment around the clock and in all directions, helping farmers and agricultural managers to develop more accurate field management plans such as irrigation, fertilization, pest control, etc
1.Agricultural Environment Monitoring System Product Introduction
The WX-NY12 Agricultural Meteorological Station (with provincial CMA certificate) is a meteorological monitoring system designed for agricultural environmental monitoring and crop growth status monitoring and early warning. It is a high-precision meteorological observation device with low power consumption, quick installation and multi-functions.
Shandong Wanxiang Environmental Agricultural Meteorological Station is mainly composed of meteorological sensors, data acquisition instruments, solar power supply systems, carbon steel towers, cloud platforms, multi-channel communication interfaces and equipment installation kits. It is debugging-free and can be quickly deployed. It is widely used in smart agriculture, farmland planting, crop production, specialty agriculture, orchards, grasslands, scientific research and other fields. Through the monitoring of agricultural meteorological stations, agricultural disaster resistance is improved and the efficiency of farming operations is improved.
2. Agricultural Environment Monitoring System Product Features
1. Low power consumption data acquisition instrument: static power consumption is less than 50uA
2. Standard GPRS networking, support for extended Bluetooth and wired transmission
3. Support optional 7-inch LCD touch screen or LED screen Version: 4.4.2, quad-core Cortex-A7, 512M/4G
4. Support modbus485 sensor expansion
5. Solar charging management MPPT automatic power point tracking
6. Three-meter carbon steel tower, four-sided horizontal arm fixed flange, optional lightning rod
7. When the limit is exceeded, the alarm can be sent to the PC or mobile phone.
8. ABS material protective box, corrosion-resistant, anti-oxidation, waterproof grade IP66
3. Technical parameters
1) Data acquisition instrument power supply interface: GX-12-3P plug, input voltage 5V, with RS232 output Json data format, data acquisition instrument power supply: DC5V±0.5V peak current 1A
2) Sensor modbus, 485 interface: GX-12-4P plug, output power supply voltage 12V/1A, device configuration interface: GX-12-4P plug, input voltage 5V
3) Solar power supply, lead-acid battery configuration, optional 30W 20AH/50W 40AH/100W 100AH. Charge controller: 150W, MPPT automatic power point tracking, efficiency increased by 20%
4) Data upload interval: 1 minute - 1000 minutes adjustable
5) 7-inch Android touch screen, screen size: 1024*600 RGB LCD
6) Some sensor parameters
name | Measuring range | Resolution | Accuracy |
Ambient temperature | -40～+60℃ | 0.1℃ | ±0.3℃ |
Relative humidity | 0～100%RH | 0.1% | ±2% |
Light intensity | 0-200000Lux | 1Lux | ±2% |
Atmospheric pressure | 300～1100KPa | 0.1KPa | ±0.3hPa |
Dew point temperature | -20~+50℃ | 0.1℃ | ±0.5℃ |
Soil temperature | -50～+80℃ | 0.1℃ | ≤±0.2℃ |
Soil moisture | 0～100% | 0.1% | ±2% |
Soil salinity | 0-20ms | ±0.1ms | ±2% |
Soil pH | 0-14 | 0.1 | ±0.2% |
wind direction | 0～360°(16 directions) | 1/16 | <3°(>1.0m/s) |
Wind speed | 0～70m/s | 0.1m/s | ±(0.3+0.03V)m/s |
rainfall | ≦4mm/min | 0.01mm | ±0.2mm |
Ultraviolet radiation | 0～70W/㎡ | 1W/㎡ | ±2% W/㎡ |
Sunshine hours | 0～24h | 0.1 h | ±2%h |
Total radiation | 0-2000W/m2 | 0.1W/m2 | Spectral range: 300-3000nm |
Photosynthetically Active Radiation | 400～700nm | Sensitivity: 10～50μv/μmol·m-2·s-1 | |
4. Product size diagram

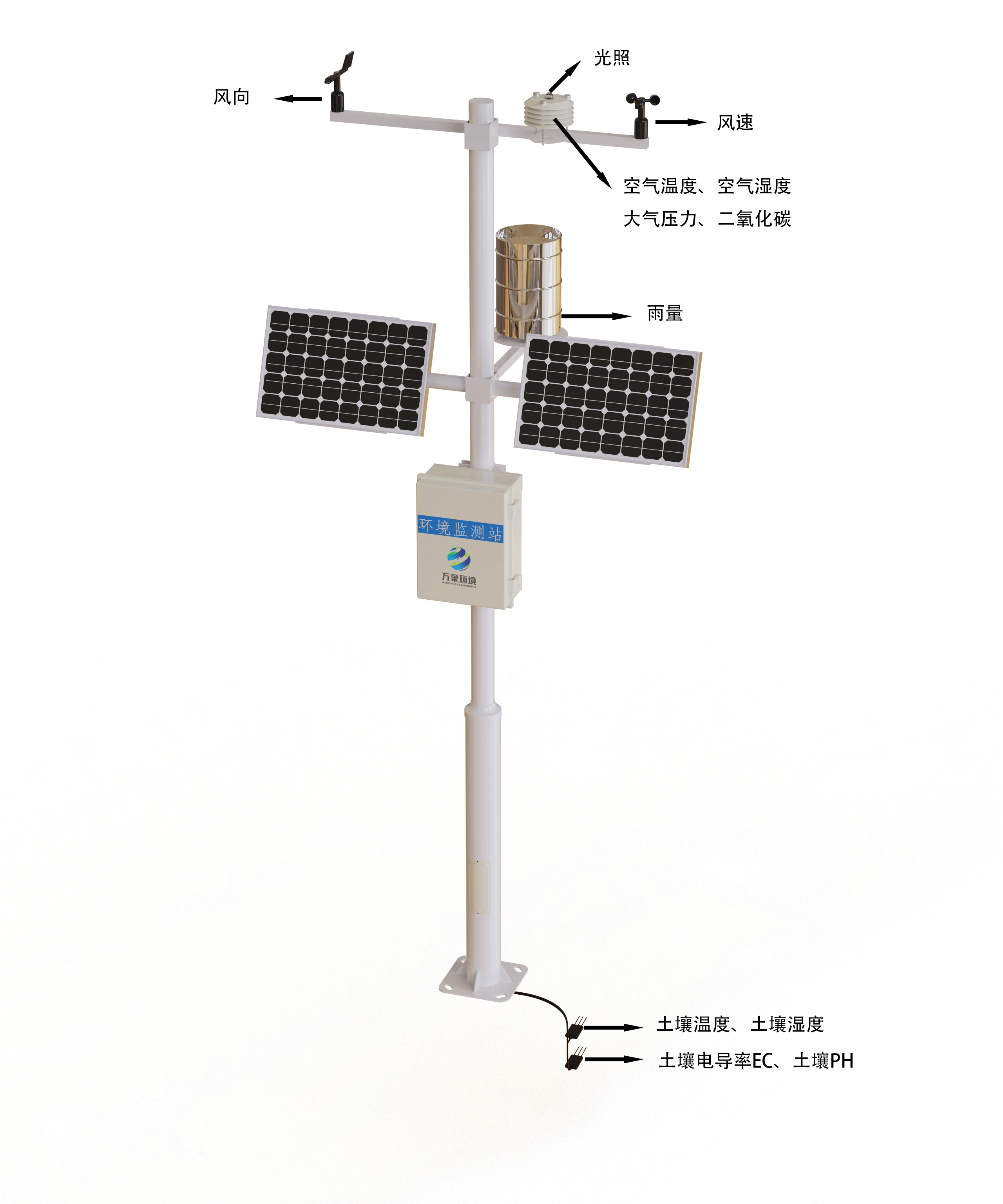

5. Product Structure Diagram
6. Introduction to host computer software
1. PC stand-alone version of data receiving, storage, viewing and analysis software
2. Support serial port data reception, processing and display
3. Support json string, modbus485 and other communication methods
4. The storage time can be set by yourself, and the acquisition time can be set by yourself in modbus485 acquisition mode
5. Support self-service addition, deletion, and modification of monitoring parameter protocols, names, icons, etc.
6. Support data post-processing function
7. Support external running of javascript scripts
7. Android APP Introduction
1. Android stand-alone data receiving, storage, viewing and analysis software
2. Support Bluetooth data reception
3. The software receives and processes the data in the background after the phone goes into sleep mode
4. Automatically add devices with json data, and modbus devices support adding devices by scanning codes
5. Support historical data viewing, analysis, and table export, support curve display, and single data point viewing.
6. Support data post-processing function
7. Support external running of javascript scripts
8. Introduction to Cloud Platform
1. CS architecture software platform, supports direct observation through mobile phones and PC browsers, without the need to install additional software.
2. Support multiple accounts and multiple devices to log in
3. Support real-time data display and historical data display dashboard
4. Cloud servers and cloud data storage are stable, reliable, easy to expand, and load balanced.
5. Support SMS alarm and threshold setting
6. Support map display and view device information.
7. Support data curve analysis
8. Support data export in table format
9. Support data forwarding, HJ-212 protocol, TCP forwarding, http protocol, etc.
10. Support data post-processing function
11. Support external running of javascript scripts
