Model：WX-YJ3
Product Price: Electronic Negotiation
Product brand: Wanxiang Environment
Rainfall monitor Product Overview Rain gauge, a precision instrument specifically designed to measure and record rainfall, can be used in meteorology, hydrology, agriculture, environmental protection and other, achieving accurate and real-time monitoring of rainfall.

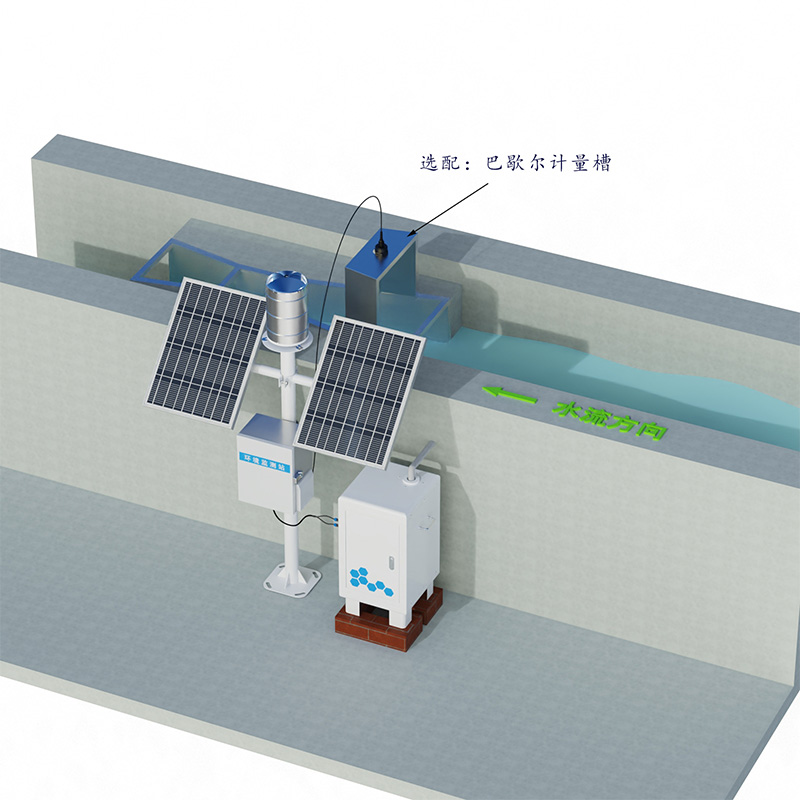

YJ3 Optical Rainfall Monitor Station is a modern type of rainfall station based on the Internet of Things, which is composed of optical rainfall sensors, collectors, solar power supply systems, and vertical rod brackets. The equipment can send rainfall data in the form of wireless remote transmission, and can send data wirelessly to the monitoring platform.
Login to the Internet of Things platform to view real-time data and historical records, rainfall data includes rainfall status, one-minute rainfall, five-minute rainfall, ten-minute rainfall, one-hour rainfall, daily rainfall, monthly daily rainfall bar chart, one-day rainfall change curve and bar chart. The cloud platform supports the setting of daily boundaries, the setting of rainfall alarm thresholds, and data can be exported in EXCEL.
Optical rain gauge monitoring stations can be widely used in meteorology, flood prevention, agriculture, hydrological and water conservancy, environmental protection, expressways, airports, ports and other fields. It can provide raw data for relevant departments such as meteorological stations, hydrological stations, forestry, national defense, and field monitoring stations to measure rainfall, precipitation intensity, precipitation time and other parameters; it can also provide real-time data with reference value for flood prevention, water supply dispatch, power stations, reservoir water situation management and other fields.
2. Rainfall monitor Product features
1. This optical rain gauge sensor uses a pure sine infrared light source, built-in narrowband filter, and the sensing surface reaches 78 square centimeters, which can measure rainfall with high precision and is not affected by strong sunlight and other light. The high light transmittance rain sensor does not affect the direct sunlight, and it can be compatible with other optical sensors built-in, such as light, total radiation, ultraviolet sensor, etc.
2. High measurement accuracy, wide range, good stability, low power consumption, strong anti-interference ability.
3. Can work 24 hours a day, rain or shine, and accurately monitor the duration of rainfall to the second.
4. Maintenance-free, raindrops contact surface is arc-shaped design structure, does not store rainwater
5. Post-installed with automatic level calibration function, no on-site calibration required
6.Low power collector: static power consumption less than 1mA
7. Support modbus485 sensor extension
8. Solar charging management MPPT Automatic Power Point Tracking
9. SMS alarm, send a text message to a specified mobile phone after exceeding the limit
10. Stainless steel material protective box, corrosion resistance, anti-oxidation, waterproof grade IP66
Three, Technical Parameters:
1. Measurement principle:Infrared scanning
2. Measurement range: rain intensity 0～4mm/min
3. Measurement accuracy: ±4%
4. Resolution: 0.01mm
5. Power supply mode: Solar power supply
6. Solar power: 30W
7. Battery parameters: 20Ah
8. Support: Carbon steel 2m support
9. Working environment: -40℃～60℃
IV. Introduction to the Cloud Platform
CS architecture software platform, supports mobile phones, PC browsers to directly observe, no need for additional software installation.
Support multiple accounts, multiple devices login
Support for real-time data display and historical data display dashboards
Cloud server, cloud data storage, stable and reliable, easy to expand, load balancing.
Support for SMS alarm and threshold setting
Support for map display, view device information.
Support data curve analysis
Support data export in table format
Support data forwarding, HJ-212 protocol, TCP forwarding, http protocol, etc.
Support for data post-processing functions
Support for external JavaScript scripts
